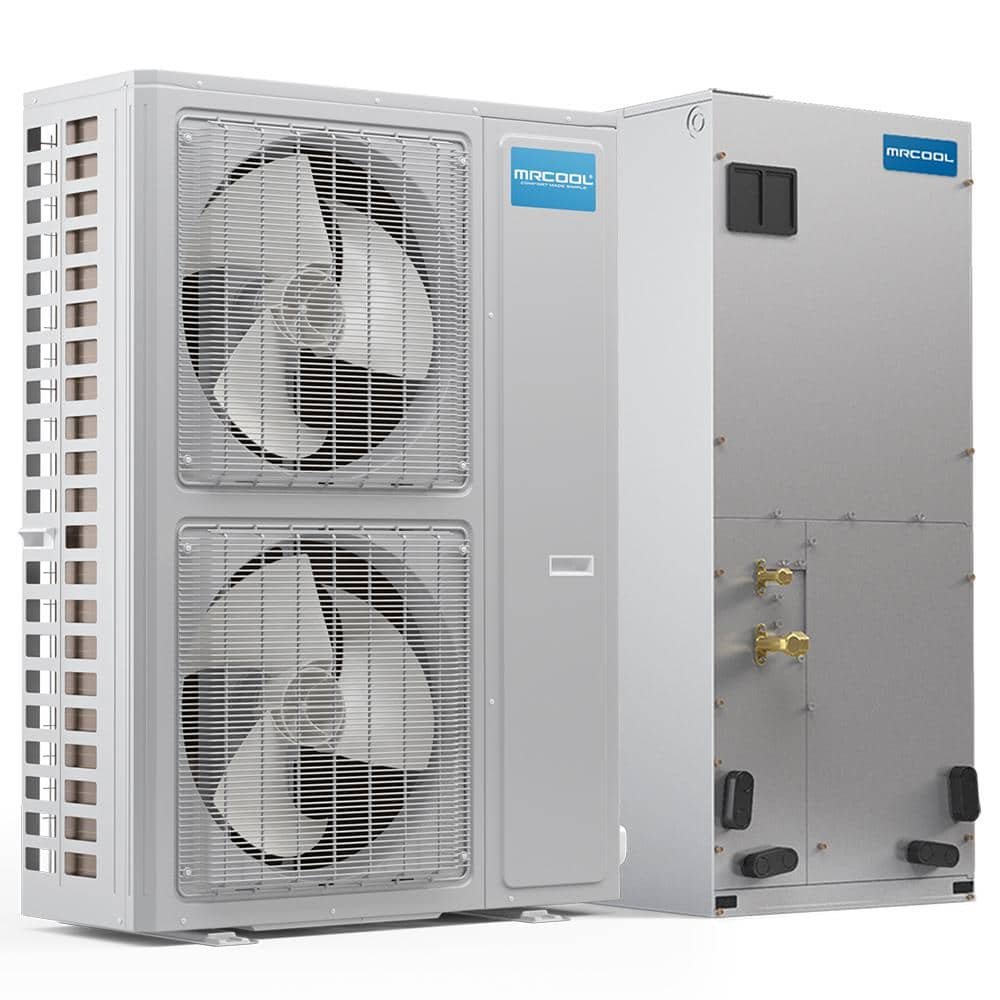

Universal System 54,000 BTU 5-Ton 17 SEER Air Conditioner 230-Volt/60Hz

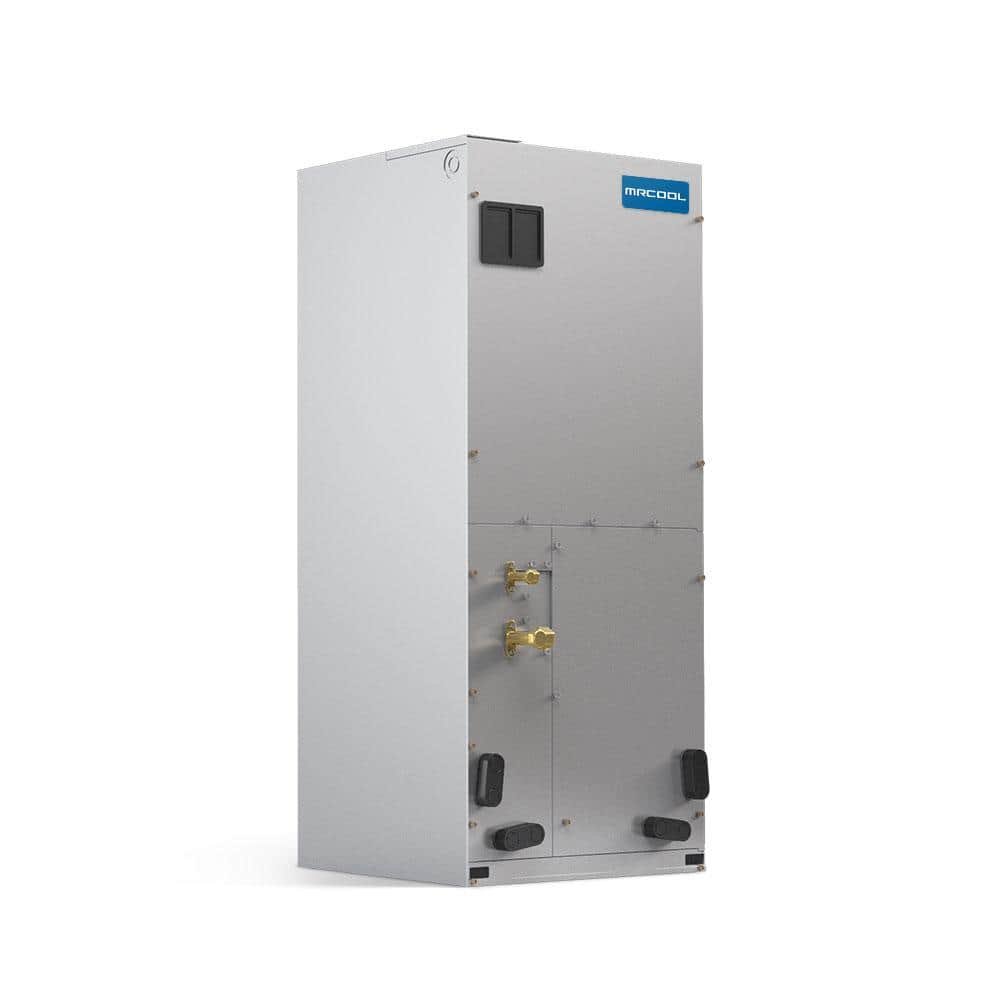

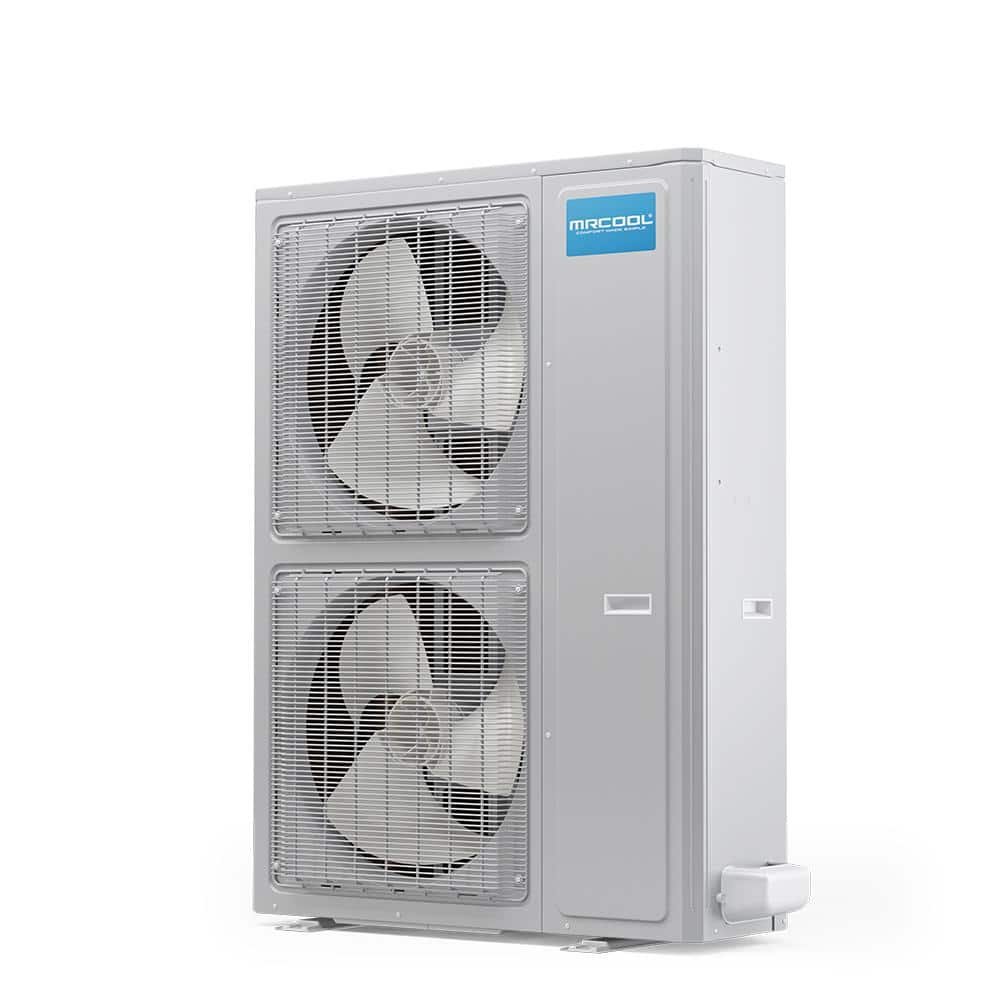

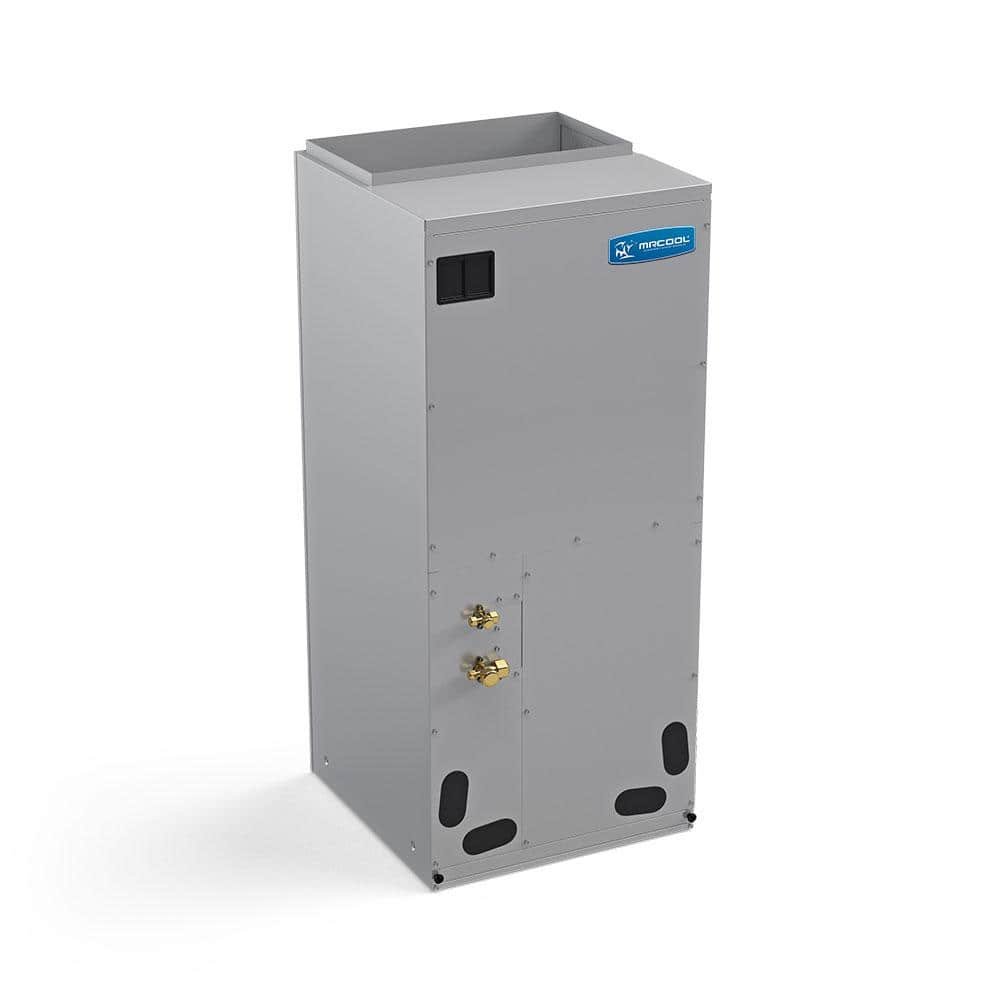

The Universal Cooling-Only Condenser and Air Handler have been designed with versatility and efficiency in mind. With its compact side-discharge design, the Universal condenser ideal for places where limited space is a factor. It also offers different options when it comes to installing and connecting the refrigerant piping. The Universal Cooling-Only Condenser comes complete with multiple safeguards that protect and monitor the unit to help ensure safe and smooth operation over the life of the system. The new Universal High-ESP Air Handler has been designed for use in high static pressure applications such as a manufactured or mobile home, or in a system that has restrictions in the ductwork which would place a strain on a conventional air handler not rated for high external static pressure. All of this in a unit that is capable of a 20 SEER rating.
- Estimated Delivery : Up to 4 business days
- Free Shipping & Returns : On all orders over $100
Details
|
Air Conditioner Product Type |
Whole House Unit |
|---|---|
|
Amperage (A) |
15 A |
|
Appliance Category |
A/Cs and Fans |
|
BTU Cooling Rating (Btu/h) |
54000 Btu/h |
|
Color |
gray |
|
Color Family |
Gray |
|
Compressor |
Rotary |
|
Cooling |
Single stage |
|
Decibel (Sound) Rating |
58 dBA |
|
Decibel Rating |
58 dBA |
|
Fan-only option |
Yes |
|
Filter Type |
Washable |
|
Filter light reminder |
No |
|
Nominal sound level (dB) |
58 |
|
Number of Fan Speeds |
8 |
|
Outdoor unit weight (lb.) |
492 |
|
Pack Size |
2 |
|
Remote Control |
No |
|
Returnable |
90-Day |
|
Self-diagnostic tools |
No |
|
Short cycle protection |
Yes |
|
Sleep setting |
No |
|
Voltage (V) |
208/230 V |
|
Weather-resistant hardware |
Yes |
|
Whole House Air Conditioner Type |
Split System |
Warranty / Certifications
|
Certifications and Listings |
AHRI Certified,ETL Certified |
|---|---|
|
Manufacturer Warranty |
10 year limited warranty |
|
Seasonal Energy Efficiency Ratio (SEER) |
17 |
Dimensions
|
Outdoor unit depth (in.) |
37.53 |
|---|---|
|
Outdoor unit height (in.) |
113.78 |
|
Outdoor unit width (in.) |
58.25 |
